🌍 Imported Product
Estimated delivery: 15–20 working days
Estimated delivery: 15–20 working days
1. Cable length: 22cm
2. Note: There are only used as a connecte cable and does not contain any software or diagnostic cables

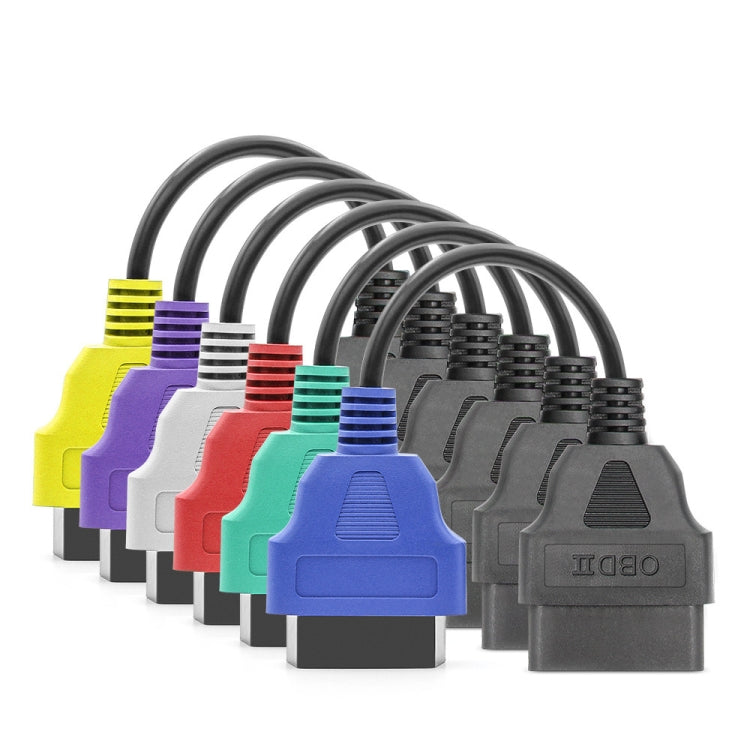

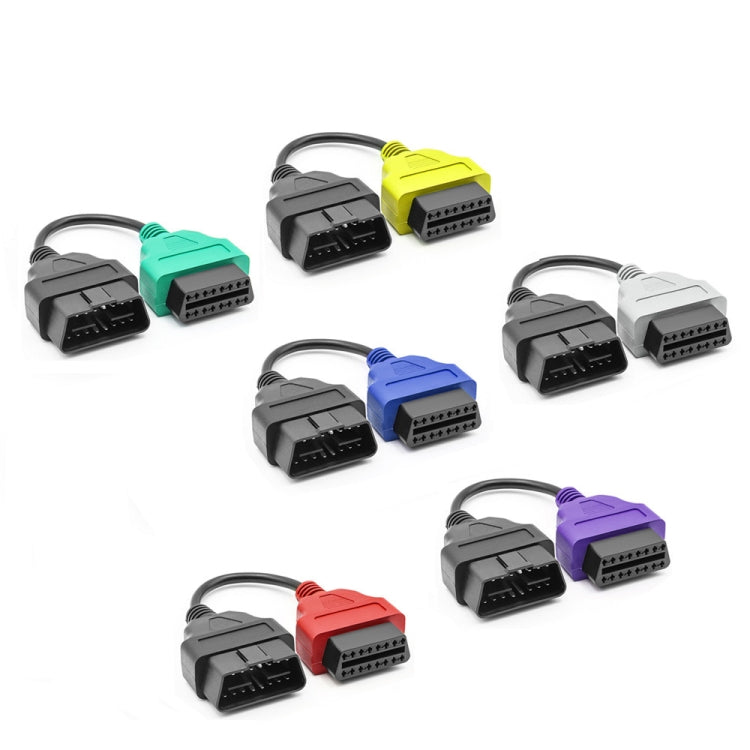

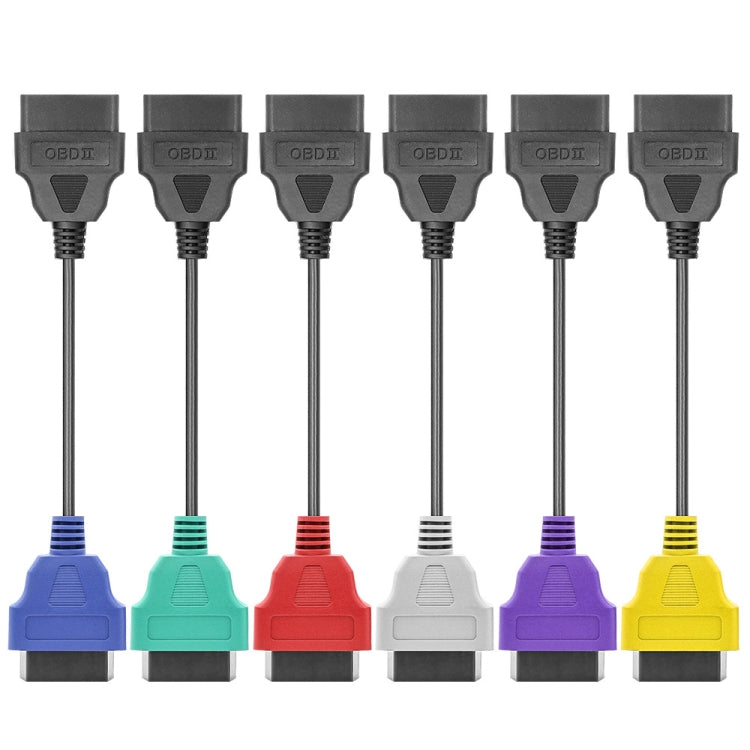

3. There are 6 adaptor cables included which perform different functions.
4. Green ABS / Power Sreeing adapter lead (Adapter 1 on MultiECUScan website)
Designed to allow access to the ABS and Power Steering systems on supported vehicles. This adapter has a green connector on one end for easy identification.
Using this adapter, Pin 7 on the diagnostic tool is connected to Pins 1,7,9 & 12 on the car.
5. Red Airbag adapter lead ( Adapter 2 on MultiECUScan website)
Designed to allow access to the Airbag system on supported vehicles.
This adapter has a red connector on one end for easy identification.
Using this adapter, Pin 7 on the diagnostic tool is connected to pin 3 only pn the car.
6. Yellow CAN adapter lead ( Adapter 3 on MultiECUScan website)
Designed to allow access to the low-speed CAN system on supported vehicles.
This adapter has a yellow connector on one end for easy identification.
Using this adapter, Pin 6 & 14 on the diagnostic tool are connected to pins 1 & 9
Respectively on the car, Pin 7 on the diagnostic tool is connected to pin 12 on the car.
2. Note: There are only used as a connecte cable and does not contain any software or diagnostic cables
3. There are 6 adaptor cables included which perform different functions.
4. Green ABS / Power Sreeing adapter lead (Adapter 1 on MultiECUScan website)
Designed to allow access to the ABS and Power Steering systems on supported vehicles. This adapter has a green connector on one end for easy identification.
Using this adapter, Pin 7 on the diagnostic tool is connected to Pins 1,7,9 & 12 on the car.
5. Red Airbag adapter lead ( Adapter 2 on MultiECUScan website)
Designed to allow access to the Airbag system on supported vehicles.
This adapter has a red connector on one end for easy identification.
Using this adapter, Pin 7 on the diagnostic tool is connected to pin 3 only pn the car.
6. Yellow CAN adapter lead ( Adapter 3 on MultiECUScan website)
Designed to allow access to the low-speed CAN system on supported vehicles.
This adapter has a yellow connector on one end for easy identification.
Using this adapter, Pin 6 & 14 on the diagnostic tool are connected to pins 1 & 9
Respectively on the car, Pin 7 on the diagnostic tool is connected to pin 12 on the car.
Specification:
