Functions:
* Read diagnostic trouble codes, both generic and manufacturer-specific, and display their meaning (over 3000 generic code definitions in the database).
* Clear trouble codes and turn off the MIL ("Check Engine" light)
* Display current sensor data, including:
* Engine RPM
* Calculated Load Value
* Coolant Temperature
* Fuel System Status
* Vehicle Speed
* Short Term Fuel Trim
* Long Term Fuel Trim
* Intake Manifold Pressure
* Timing Advance
* Intake Air Temperature
* Air Flow Rate
* Absolute Throttle Position
* Oxygen sensor voltages/associated short term fuel trims
* Fuel System status
* Fuel Pressure
* Many others.
Features

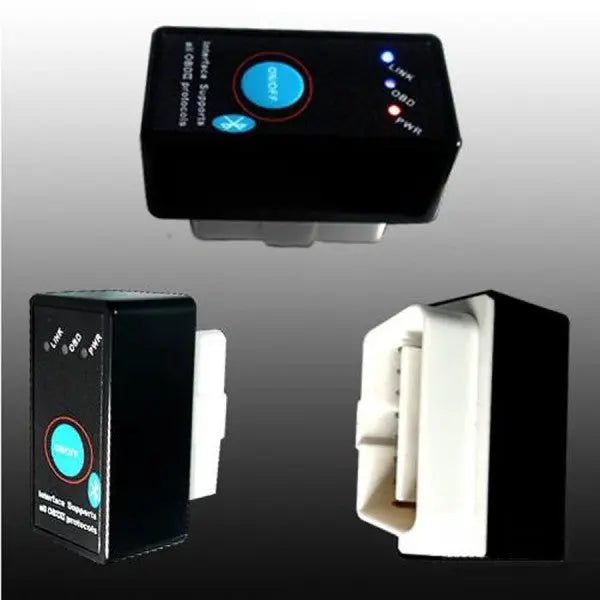

OBD SCAN is the newly developed wireless scan tool. It supports all OBD-II protocols
* Automatic
* SAE J1850 PWM(41.6Kbaud)
* SAE J1850 VPW(10.4Kbaud)
* ISO9141-2(5 baud init,10.4Kbaud)
* ISO14230-4 KWP(5 baud init,10.4 Kbaud)
* ISO14230-4 KWP(fast init,10.4 Kbaud)
* ISO15765-4 CAN(11bit ID,500 Kbaud)
* ISO15765-4 CAN(29bit ID,500 Kbaud)
* ISO15765-4 CAN(11bit ID,250 Kbaud)
* ISO15765-4 CAN(29bit ID,250 Kbaud)
A.SAE J1939 CAN(29bit ID,250*Kbaud)
B.USER1 CAN(11*bit ID,125*Kbaud)
C.USER2 CAN(11*bit ID,50*kbaud)
*default settings(user adjustable)
Output Protocol: RS232 to bluetooth
Frequency: 38400
Voltage: 12V
Current: 45mA
Bluetooth: 10M
Supported platform: Android, Symbian, Windows Mobile, palm, pc, pocket pc.
Size: 70*45*25
Net Weight: 55.6g

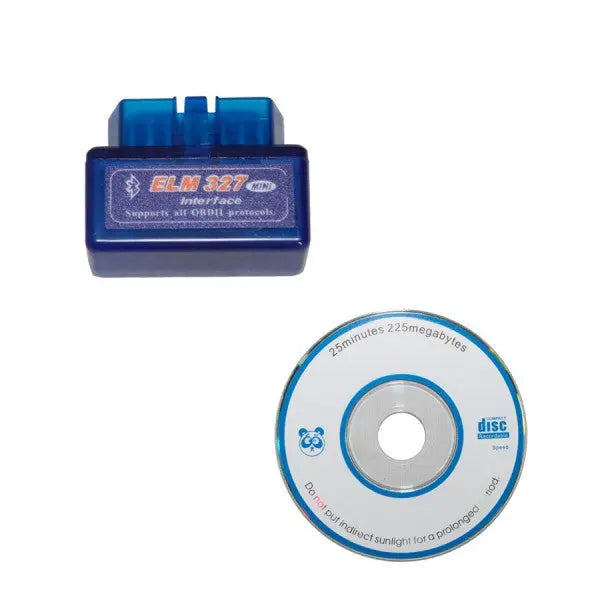

Package content:
1 * ELM327 unit (Bluetooth version)
1 * CD (Driver, Software)
