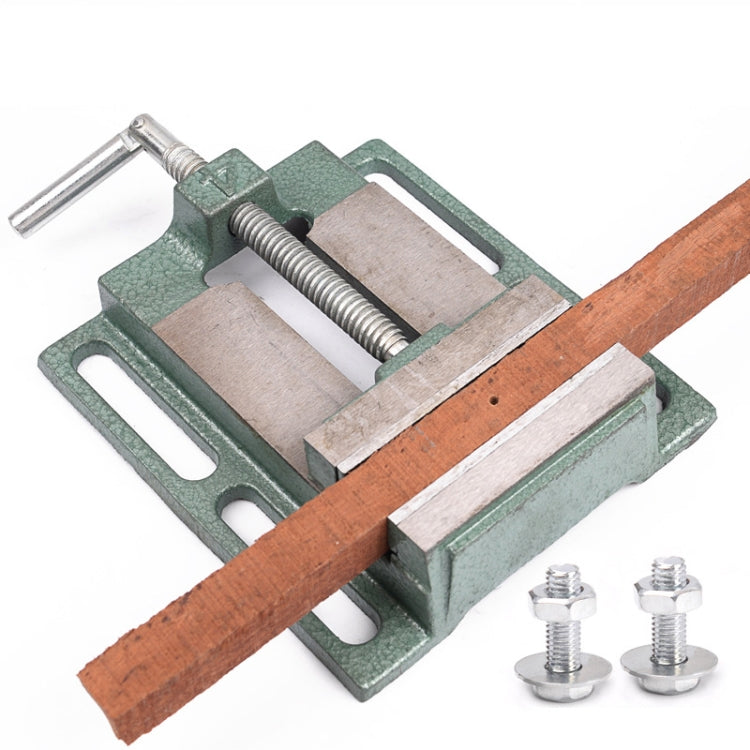

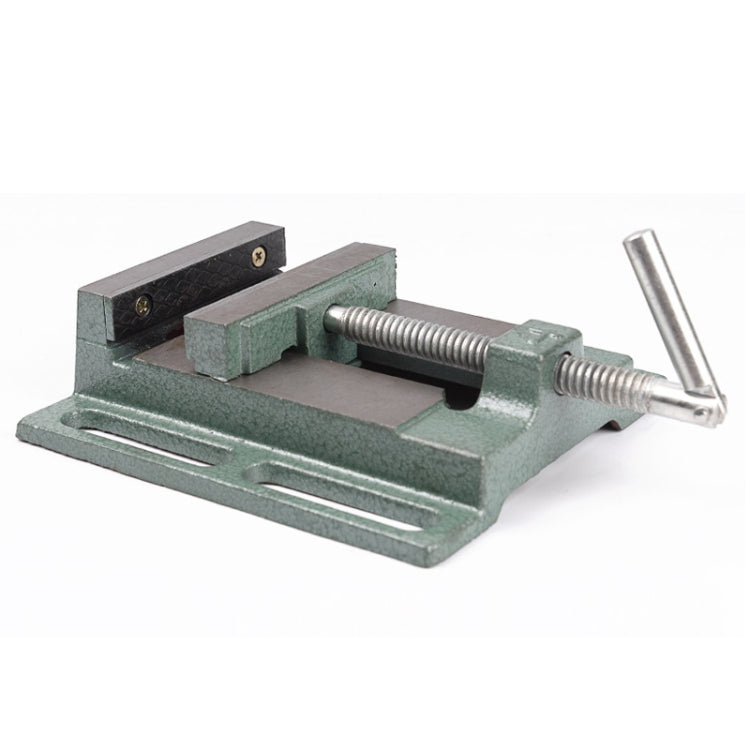

Flat-Nose Pliers For Woodworking Milling Machine, 2.5 Inch, 3 Inch, 4 Inch, 5 Inch, 6 Inch
1. Material: cast iron
2. Handle material: steel
3. Shape: flat mouth
4. Style: american
5. It can be used for single use, and can also be used with small bench drills and electric drill stands

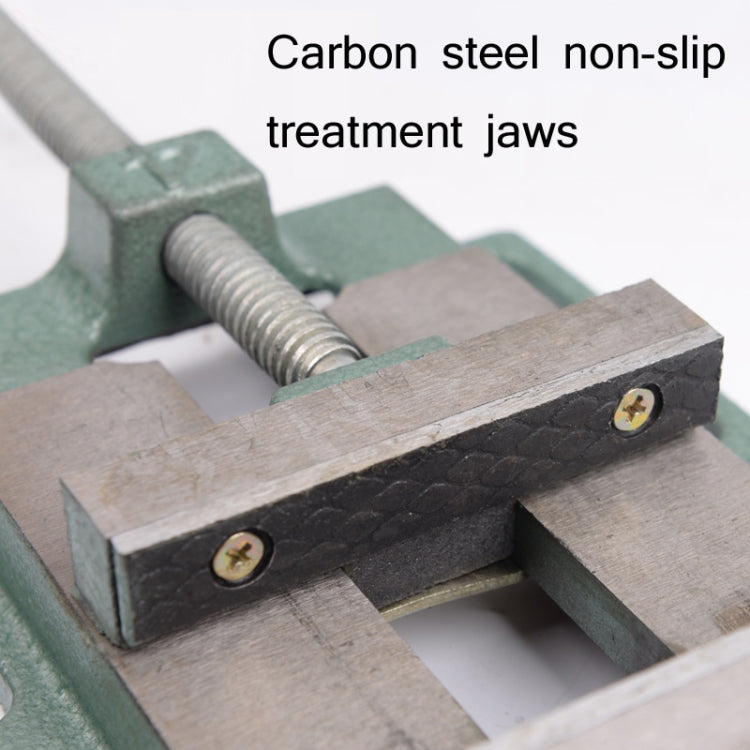

6. Carbon steel non-slip treatment jaws for tighter clamping

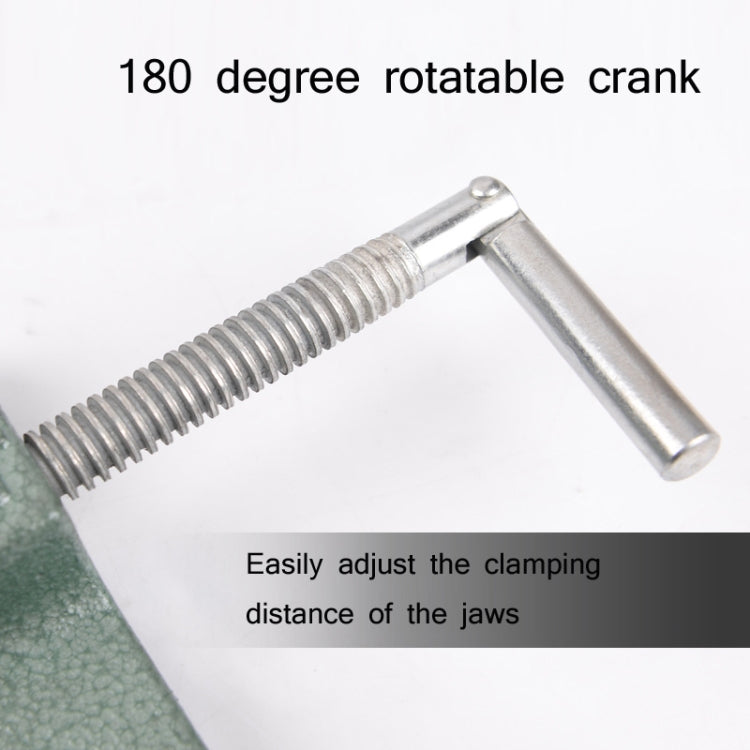

7. The 180-degree rotatable crank handle can easily adjust the clamping distance of the jaws

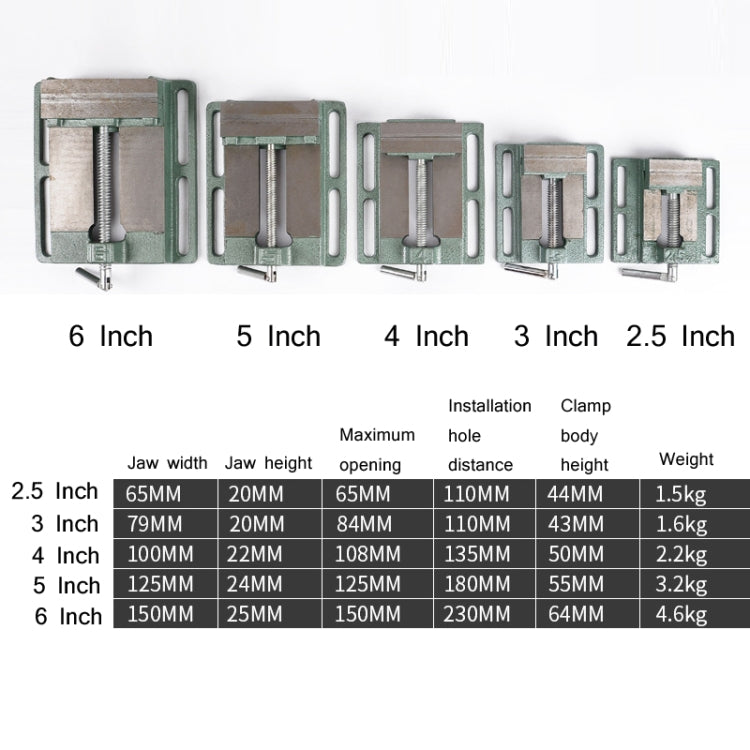

8. 2.5 inches: jaw width 60 mm, jaw height 20 mm, opening range 65 mm, mounting hole distance 110 mm, clamp body height 43 mm, weight 1.5 kg
9. 3 inches: jaw width 79 mm, jaw height 20 mm, opening range 84 mm, mounting hole distance 110 mm, clamp body height 43 mm, weight 1.6 kg
10. 4 inches: jaw width 110 mm, jaw height 22 mm, opening range 108 mm, installation hole distance 135 mm, clamp body height 50 mm, weight 2.2 kg
11. 5 inches: jaw width 125 mm, jaw height 24 mm, opening range 125 mm, mounting hole distance 150 mm, clamp body height 55 mm, weight 3.2 kg
12. 6 inches: jaw width 150 mm, jaw height 25 mm, opening range 150 mm, installation hole distance 185 mm, clamp body height 64 mm, weight 4.6 kg
The package contains:
Flat nose pliers x 1
Fixing screw x 2
Specification:
| Package Weight |
|
