Sold out
Koorinwoo Parktronic Car Parking Sensors with Rear view Camera & 4.3 Inch Folding Monitor Screen
Click to zoom in

Koorinwoo Parktronic Car Parking Sensors with Rear view Camera & 4.3 Inch Folding Monitor Screen

R 1,260.00

Koorinwoo Parktronic Car Parking Sensors with Rear view Camera & 4.3 Inch Folding Monitor Screen

3in1 Dual Core CPU Car Parking Assistance Sensor Reversing Radar Video all-in-one System Connect Car Monitor and Rearview Camera

Functional Description:

4 Sensors Dual Core Car Rear View Camera Parking Assistance System Sound Alarm.  Car Reversing image and distance can show on Car Mirror Monitor.

Parcel Included:

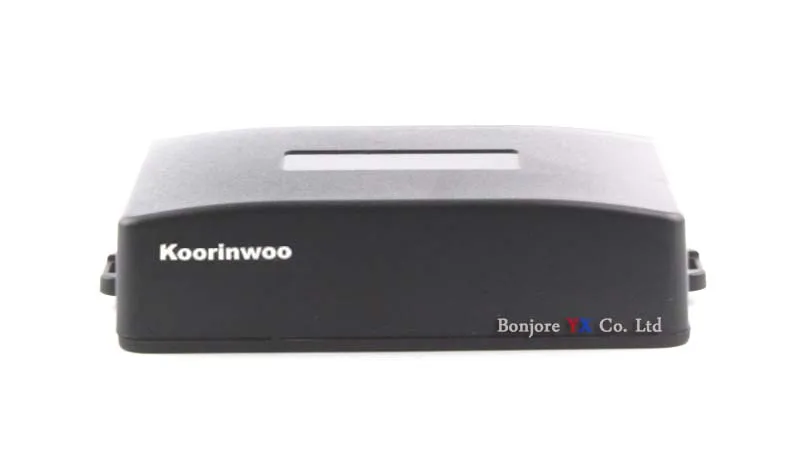

* 1 Set Video Parking Sensors system (As picture show)(Black, silver, red, blue,white, Gray,Optional)

* 1 Set CCD Car Rear view Camera (camera, 2*Screws, video cable and power cable)

* 1 Set 4.3 inch Car mirror monitor(Monitor and power cable)

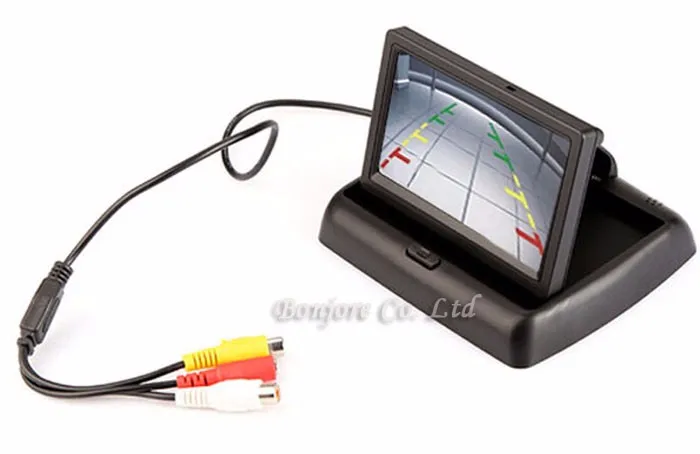

Car Mirror Monitor :

Screen size:4.3 inch Display Format:16:9

Contrast:300:1,Resolution:800*480

Power Voltage:12V DC,Power Consumption;<=6W

Item type:Parking Assistance

Operate System:PAL/NTSC(Both)

Video Input:V1/V2.auto switch

Operating Voltage:DC 9V-16V

Storage temperature:-40~60 degree Celsius

Operation temperature:-40-80 degree Celsius

Car Make:All Car

Combo Highlights:

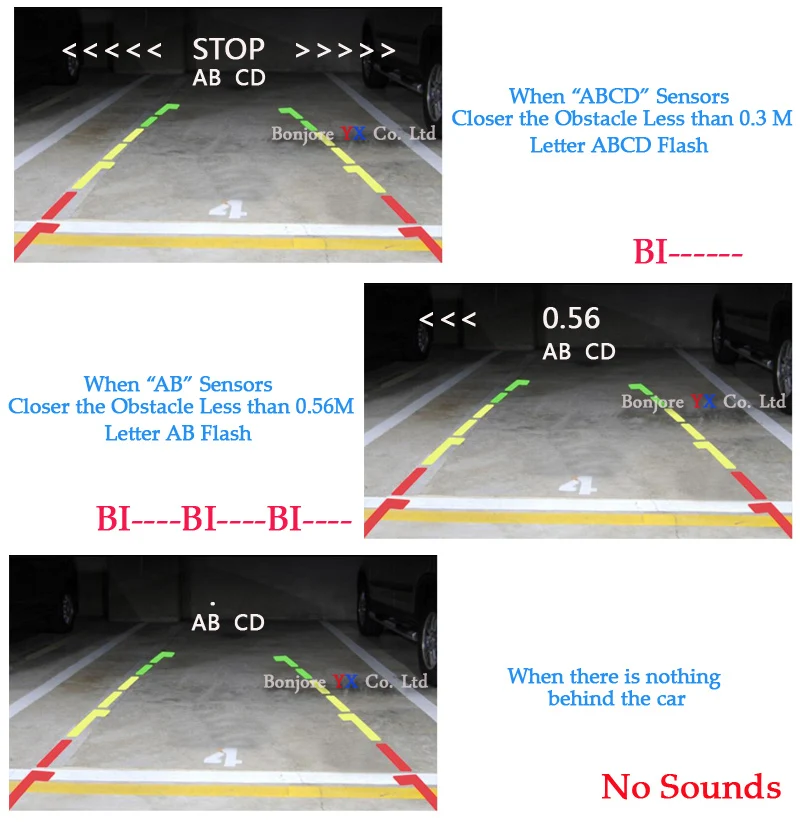

1. Show rear view image and distance on the monitor at the same time if you connect with screen and rearview camera together
2. Keep you safer when parking
3. This parking sensor will also warn you via bibi speaker since the distance is 1.5m.

Features:
Dual Core CPU
Step-up buzzer alarm
Detective distance from 0.3-2m
Can be connected with camera and any rearview monitor and display distance on the monitor

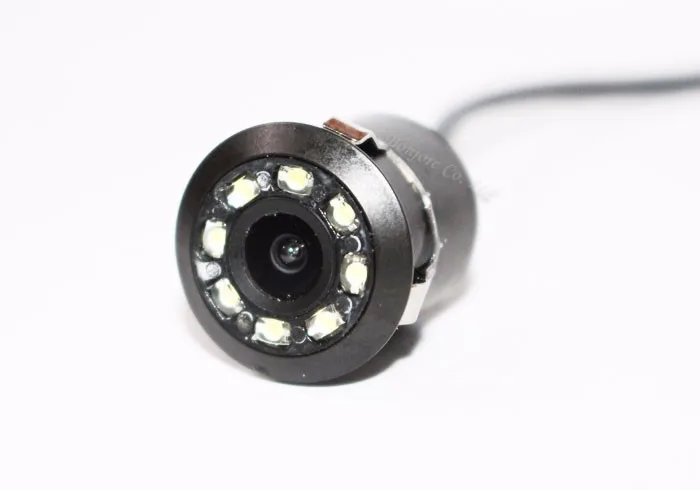

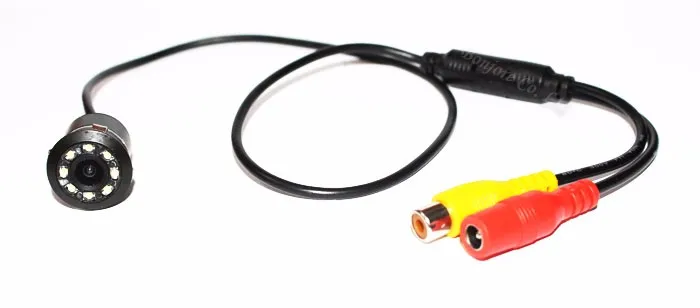

Car Rear Camera

Image sensor:CCD 7070 (Distance reference marking display)

Parking line included 3 colors: Green , Yellow and Red

Resolution:580TV line

Lens angle:2.8mm(150deg)

S/N Ratio:Better than 48dB

Power:12V DC(+/-10%)

Waterproof grade:IP68

Operate System:PAL/NTSC(Default)

44




IMG_1189





413IMG_5910IMG_6924With cmaera showingIMG_6913IMG_6942IMG_6920IMG_69195CCD4.3QQ20151217210848QQ20170106154257IMG_6292IMG_65552QQ20151211181257-3579IMG_1321IMG_1333IMG_1326IMG_1322IMG_1078123
