FeaturesIntroduction

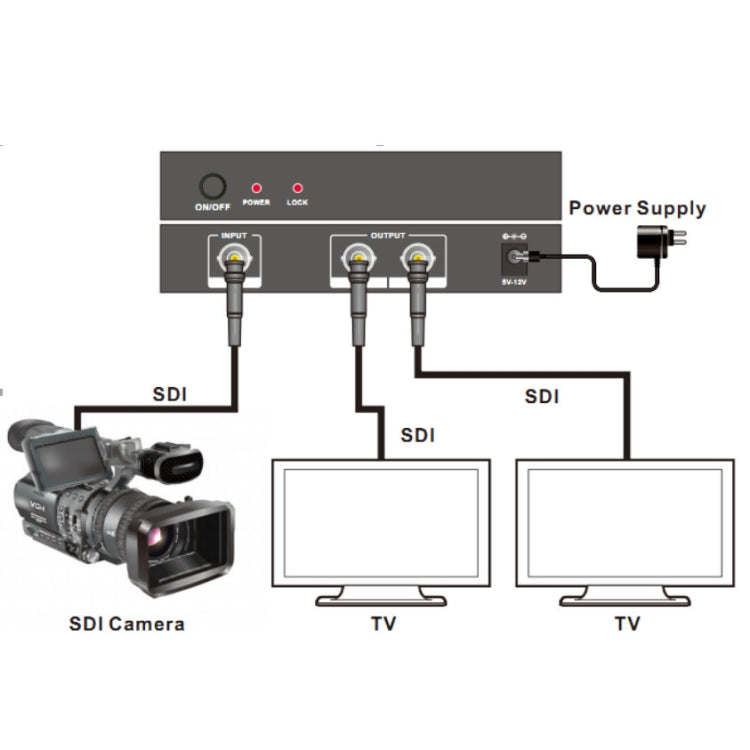

1 x 2 SDI splitter distributes allows 1 SDI, HD-SDI or 3G-SDI video source to 2 SDI/HD-SDI/3G-SDI displays simultaneously. This product built-in automatic identification and compatible with SD-SDI, HD-SDI, 3G-SDI all format of SDI signal. It is the support 2.97Gbps bandwidth, and supports lossless transmission over long distances.
Features
1. 1 SDI input signal split to 2 SDI sink devices.
2. Supports SD-SDI(270Mb/s), HD-SDI(1.485Gb/s), 3G-SDI(2.97Gb/s) video format.
3. Built-in cable equilibrium, clock recovery and drive.
4. Support resolutions up to 1920x1080@60Hz.
5. Support signal input and output distances of up to 300m for SD signals, 200m for HD signals and 100m for 3G signals.
6. Support 5V wide voltage input.
Specification:
| General |
| Input Port |

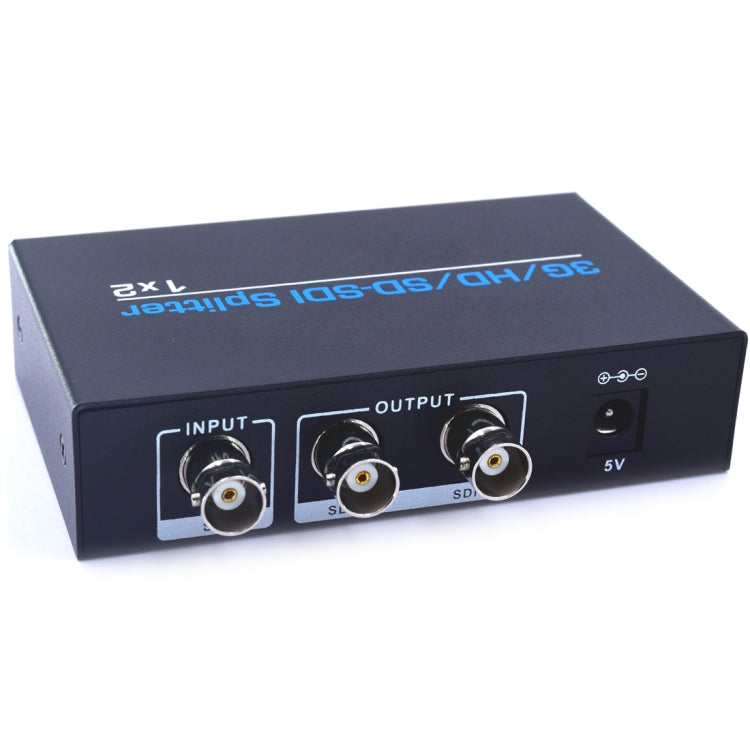

1 x BNC Female input port |
| Output Port |
2 x BNC Female output ports |
| SDI Transmission Rates |
SD-SDI (270Mb/s), HD-SDI(1.485Gb/s), 3G-SDI (2.97Gb/s) |
| Power Supply |
DC 5.0V / 1.0A |
| Frequency Bandwidth |
3.0Gbps |
| Operating Temperature |
0 ~ 40 Degree Celsius |
| Storage Temperature |
-20 ~ 60 Degree Celsius |
| Operating Humidity |
20 ~ 90 Percent RH (Non-condensing) |
| ESD Protection Human Body Model |
+-8kV (air-gap discharge)
+-4kV (contact discharge) |
|
| Package Include |
| Package Contents |
1 x User Manual
1 x Power Supply
1 x SDI Splitter |
|
| Package Weight |
| One Package Weight |
0.40kgs / 0.87lb |

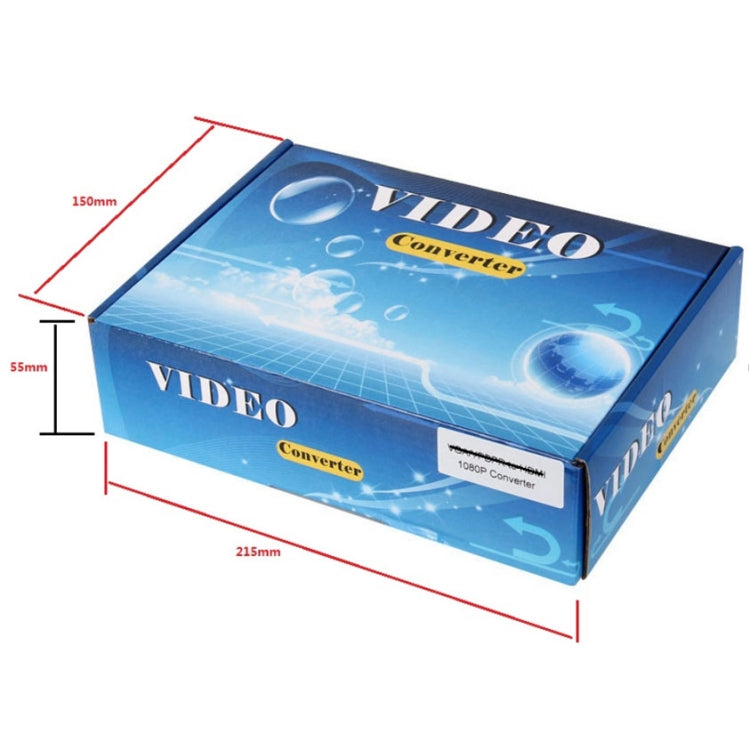

| One Package Size |
23cm * 15cm * 6cm / 9.06inch * 5.91inch * 2.36inch |
| Carton Weight |
8.40kgs / 18.52lb |
| Carton Size |
47cm * 32cm * 34cm / 18.5inch * 12.6inch * 13.39inch |
| Loading Container |
20GP: 521 cartons * 20 pcs = 10420 pcs
40HQ: 1210 cartons * 20 pcs = 24200 pcs
|
|
