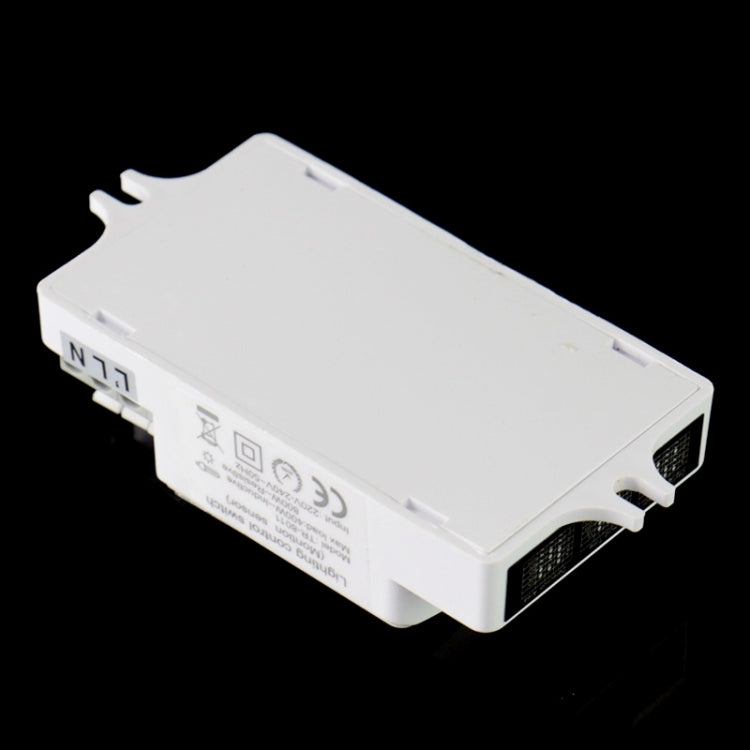

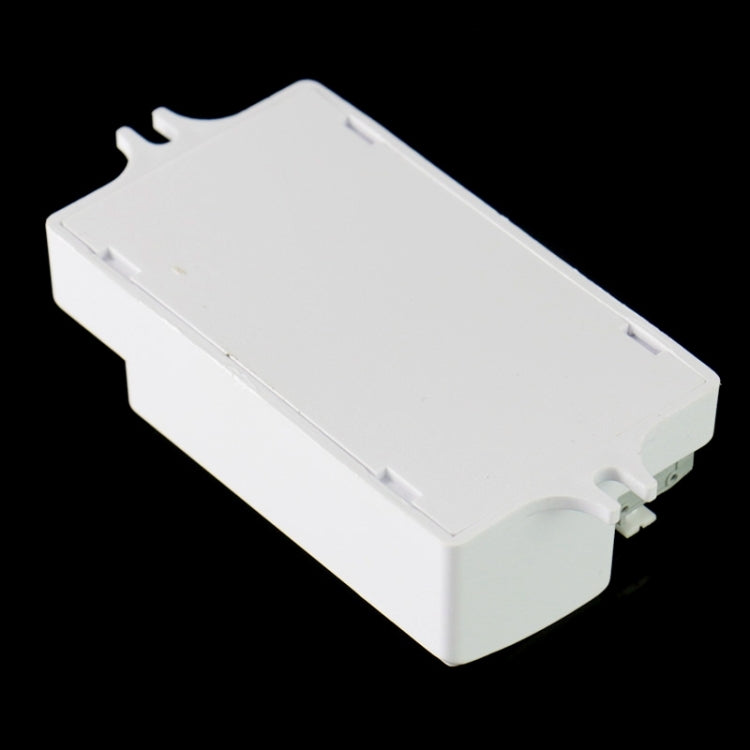

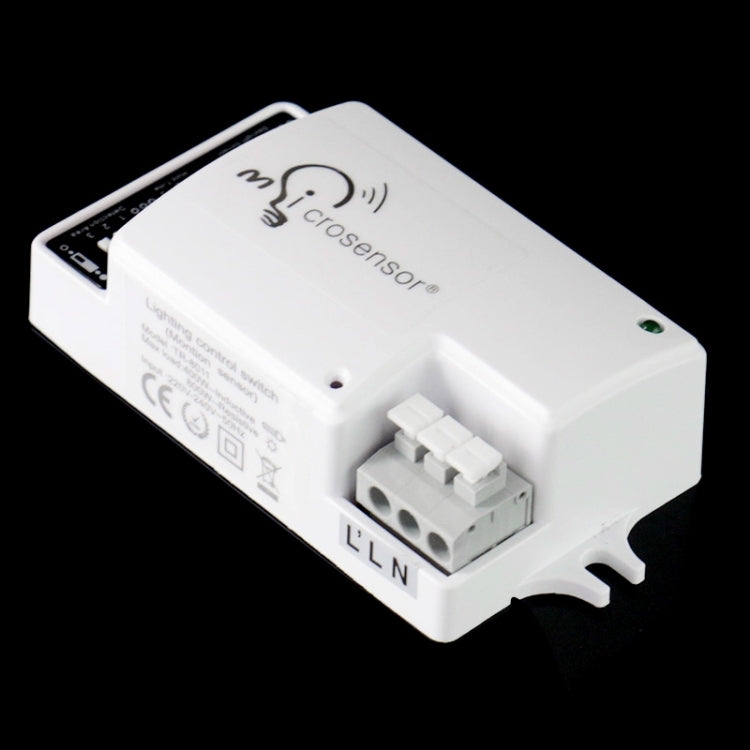

TR-8011 AC 220-240V Light Control Sensor Automatic Light DIP Switch, Detection Range: 10m
Features
1. The product can turn on or turn off light according to ambient-light.
2. Ambient-temperature and humidity can not affect it.
3. It is not only convenient but also practical.
4. Detection range: 10m (10%/30%/50%/80%/100%).
5. Delay time: 5s/15s/3min/5min/10min.
6. Light control: 5/10/30/100/disable.
7. Microwave frequency: 5.8GHz +/-75MHz.
8. Transmit power: <0.2mW.
9. Installation: Ceiling installation, wall hangings.
10. Detection angle: 180 degrees.
11. Installation height: Max. 2.5m.
12. IP rating: IP20.
13. It can control the load working only at night.

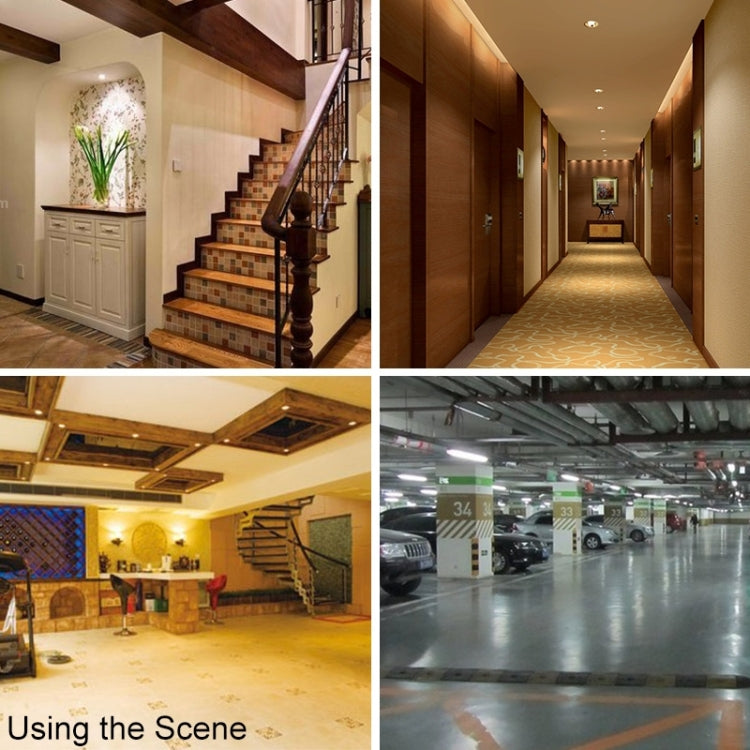

14. For instance road light, garden light etc.

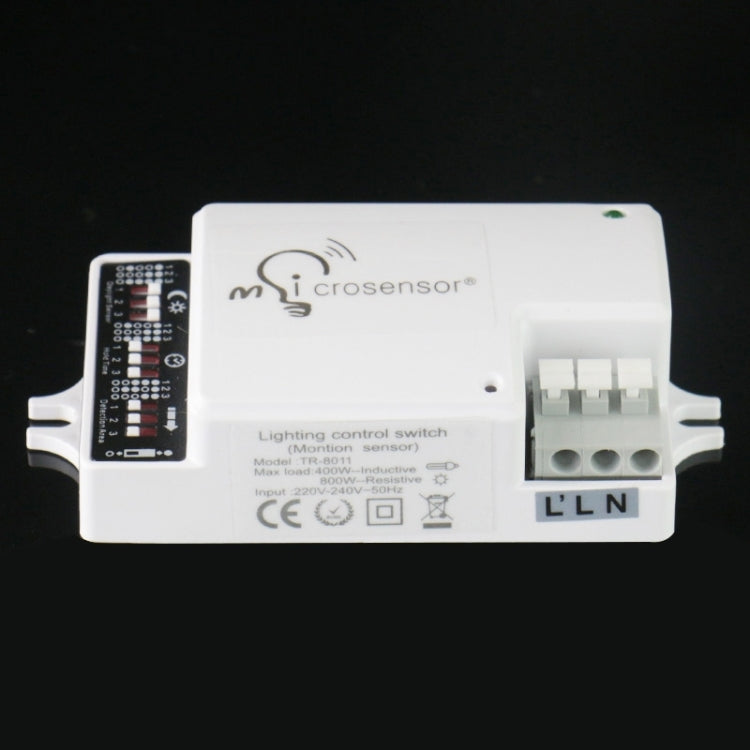

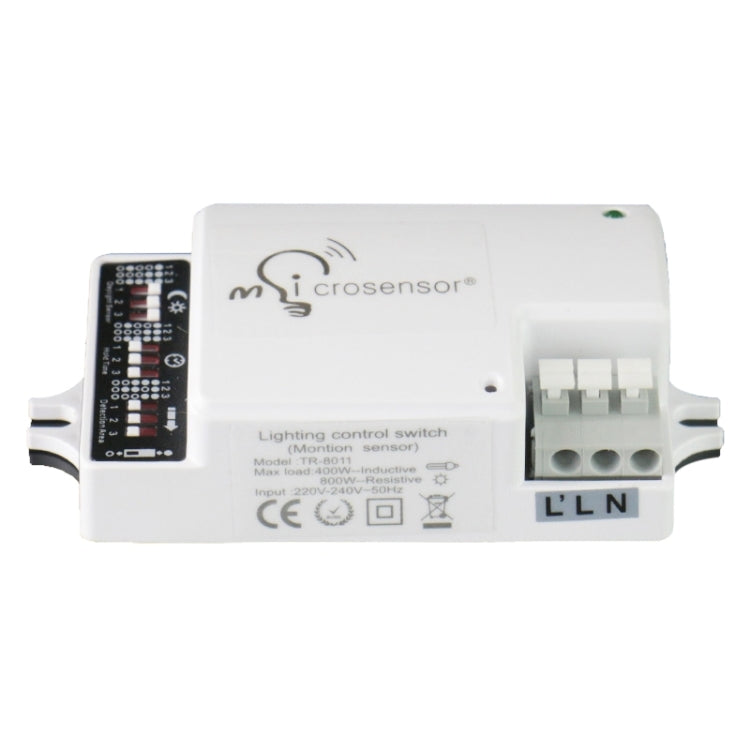

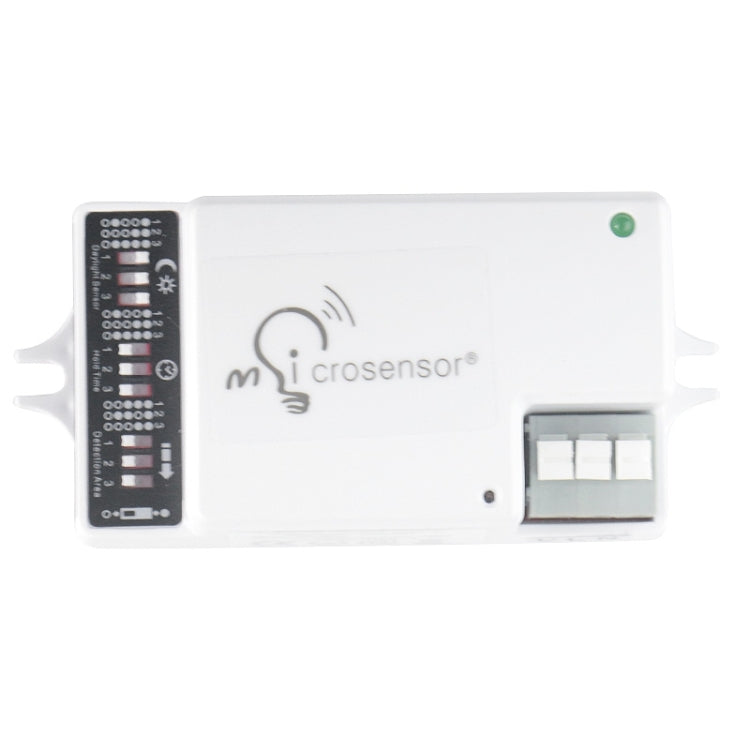

Dial Switch Instructions
1. Light control setting
Light response threshold 5 stalls to choose from, 5Lux,10Lux,30Lux,100Luxand disable, respectively, optical control of a brightness sensor to setthe threshold values as defined.
2. Delay setting
Delay setting with 5 stalls to choose from, namely 5S,15S,180S,300S,600S;after induction, the output signal will remain within a preset time,detected during the mobile signal, delay will be included.
3. Sets the distance
Distance setting with 5 stalls to choose from, namely10%,30%,50%,80%,100%; based on actual usage, choose a different distance.
1. The product can turn on or turn off light according to ambient-light.
2. Ambient-temperature and humidity can not affect it.
3. It is not only convenient but also practical.
4. Detection range: 10m (10%/30%/50%/80%/100%).
5. Delay time: 5s/15s/3min/5min/10min.
6. Light control: 5/10/30/100/disable.
7. Microwave frequency: 5.8GHz +/-75MHz.
8. Transmit power: <0.2mW.
9. Installation: Ceiling installation, wall hangings.
10. Detection angle: 180 degrees.
11. Installation height: Max. 2.5m.
12. IP rating: IP20.
13. It can control the load working only at night.
14. For instance road light, garden light etc.
Dial Switch Instructions
1. Light control setting
Light response threshold 5 stalls to choose from, 5Lux,10Lux,30Lux,100Luxand disable, respectively, optical control of a brightness sensor to setthe threshold values as defined.
2. Delay setting
Delay setting with 5 stalls to choose from, namely 5S,15S,180S,300S,600S;after induction, the output signal will remain within a preset time,detected during the mobile signal, delay will be included.
3. Sets the distance
Distance setting with 5 stalls to choose from, namely10%,30%,50%,80%,100%; based on actual usage, choose a different distance.
