Vgate Maxiscan VS890 OBD2 Code Reader Diagnostic Tool - Awesome Imports
Click to zoom in

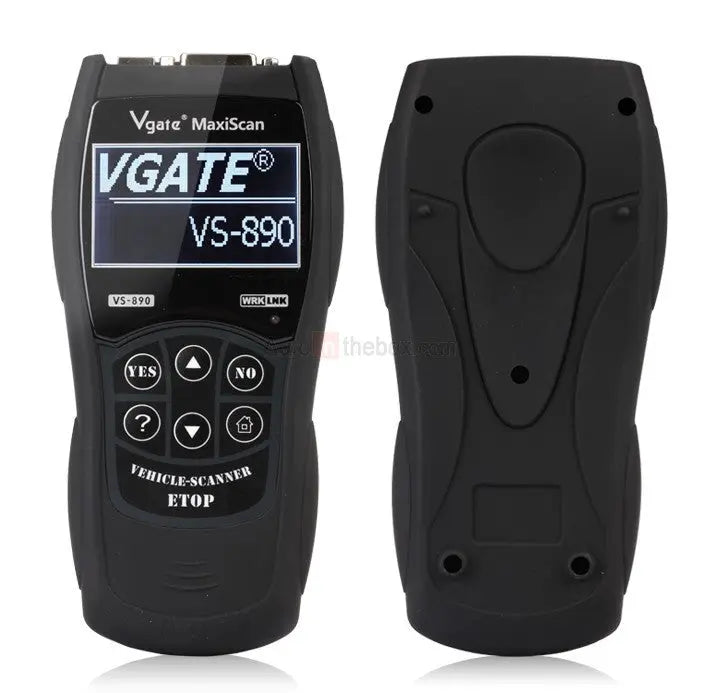

Vgate Maxiscan VS890 OBD2 Code Reader Diagnostic Tool

R 1,010.00

Vgate Maxiscan VS890 OBD2 Code Reader Diagnostic Tool



  • Works on all OBDII compliant vehicles
  • This operation will erase all DTCs , freeze frame Data , oxygen sensor data, and reset IM Monitors and MIL, High quality PET 6-key film keypad. (Support manually input DTC Look-up).
  • Multi-language user interface, supports up to 13 languages(Spain, Portugal, Korean, Japanese, Italian, Hebrew, German, French, Finnish, English, Dutch, Danish, Chinese).

  • Supported protocol:
    SAE J1850 PWM SAE J1850 VPW ISO9141 KWP FAST INIT KWP 5BAUD INIT CAN 11BIT 500K CAN 29BIT 500K CAN 11BIT 250K CAN 29BIT 250K CAN_USER1 11B 125K CAN_USER1 29B 125K CAN_USER2 11B 50K CAN_USER2 29B 50K Full CAN BUS support for new cars 11 Bit and 29Bit CAN Capable of communicating with multi-ECU System

    Feature:

    1.Color: Metal Black
    2.LCD:3 inch black mask LCD, wide visible area, high contrast .The contents is readable even in strong sun shine.
    3.ABS+PC Engineer Plastic Housing (passed 6-meter free fall test.) Patent No.200830010963.5.
    4. Harmless fade-resistant paint.
    5.Rubber oil sprayed housing; slide, dirty, and vibration proof.
    6.Passed EMI/EMC test.
    7.High quality PET 6-key film keypad.(3M harmless glue)
    8.CE,FCC,RoHs Certified 9.Support manually input DTC Look-up
    10.Read DTCs
    11.Clear DTCs
    12.Data stream
    13.Freeze Frame
    14.I/M Readiness
    15.O2 Monitor Test
    16.On-Board Mon Test
    17.Component Test
    18.Vehicle Info.
    19.Modules Present
    20.Unit of Measure
    21.State Emission
    22.Read All DTCs
    23.Read Stored DTCs
    24.Read Pending DTCs
    25.Detailed help information
    26.Capable of showing probable cause of a DTCs.
    27.Up to 161 data items, each of them is with online help information.
    28.Reset engine MIL
    29.This operation will erase all DTCs, freeze frame Data, oxygen sensor data, and reset IM Monitors and MIL.
    Paper board box Size: 295mm×152mm×65mm
    Unit Weight:198g
    Cable Weight:116g
    Package Weight:160g
    Gross Weigh:490g

    Package list:

    Main Unit: 190mm×93mm×30mm
    LCD:128×64
    Black Mask LCD Visible view: 67mm×40mm
    Cable:J1962 120cm
